Ultrasonic Hand Welding Unit

Product Description
The HUW1000 family of low power systems is Cheersonic’s latest offering for applications with power requirements of1000 Watts or less. The HUW1000 units can be used with their appropriate hand-held devices or can be connected directly to a converter/booster/horn stack for use in automation.
An ultrasonic spot welding machine in accordance with ergonomics is arranged on the basis of the handheld welder. It is primarily used for point-ny-point riveting, welding and molding of thermoplastic. With the modular integrated circuit, it has strong output power and is easy for operation. The built-in fully-automatic protection circuit ensures safe application and stable and reliable operation.

Advantages
• The welding horns can be customized
• Multifunctional ultrasonic series models, different from the kind of electric iron plug type, when in operation.
• Simple to used no need for glue or solder, welding time can be adjusted or manual controlled.
• Low power consumption, strong effect, low noise small volume.

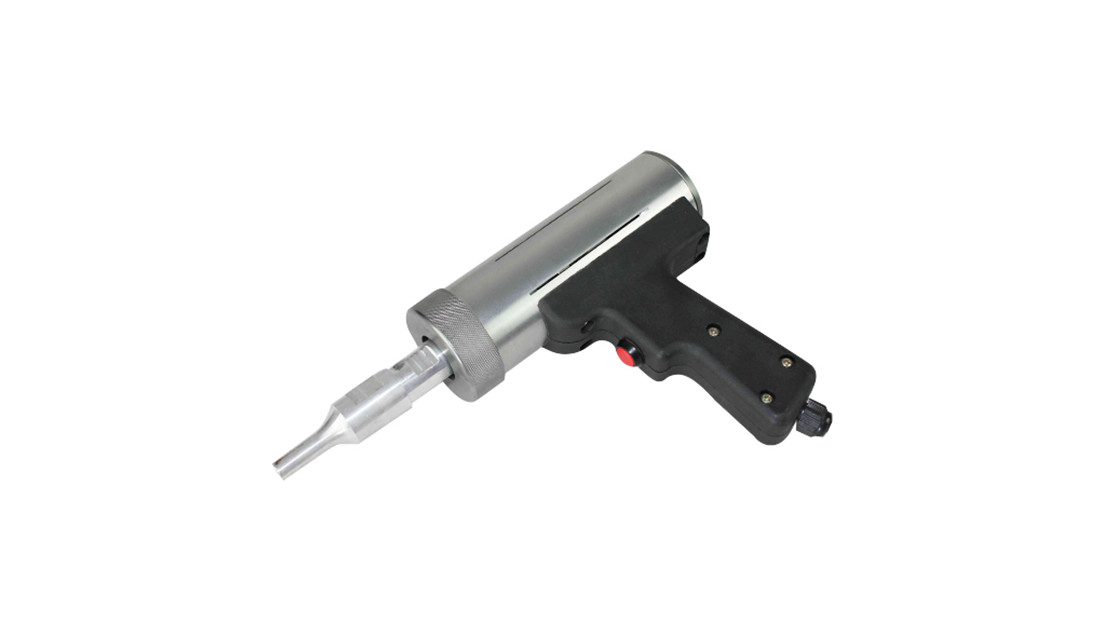

• Pistol type&straight staple type guns available.
• Easy grip guns available with less diameter
• High quality connectors used to lessen loose connections
• Available in below frequencies:
20 kHz & 30 kHz & 35 kHz & 40 kHz

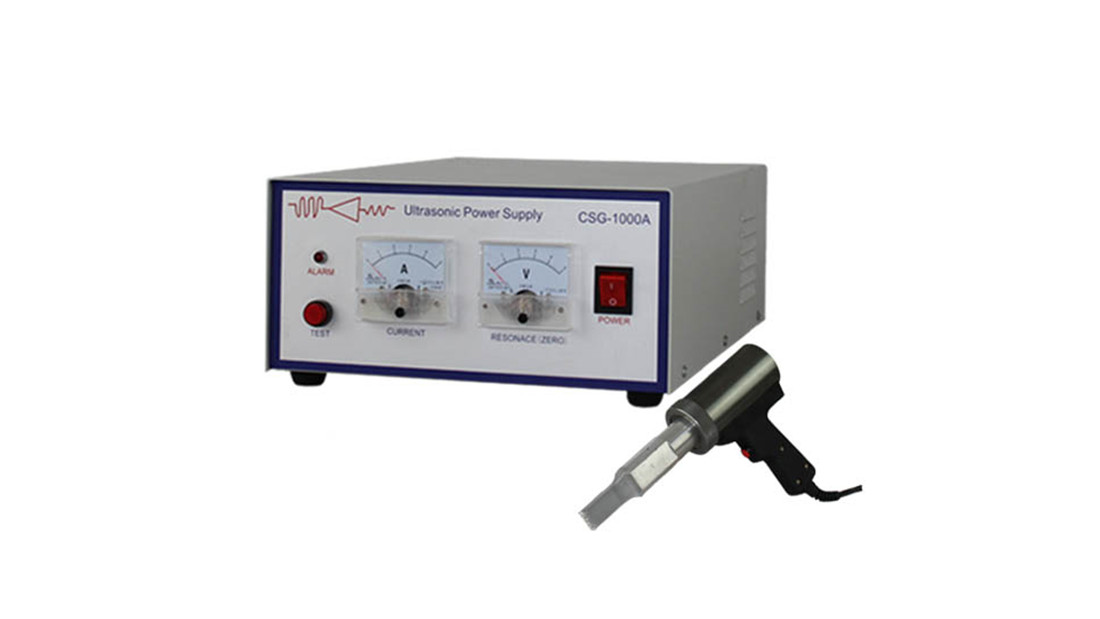

HUW1000 Ultrasonic Hand Welding Unit

Applications
• Sun protection
• Clothing
• Ribbon
• Bedding
• Awnings and interior blind fabrics
• Performance fabrics
• Any fusible fabric

 Name  Ultrasonic Hand Welding Unit
 Model  HUW1000
 Power Rating  1000watts (Optional 800/600/500/300watt)
 Frequency  20kHz (Optional 28/30/40kHz)
 Dimensions  380x285x140mm
 Voltage  110v,50/60Hz/220V
 Includes  Generator/Converter/Probe
 Model Horn  Customized
