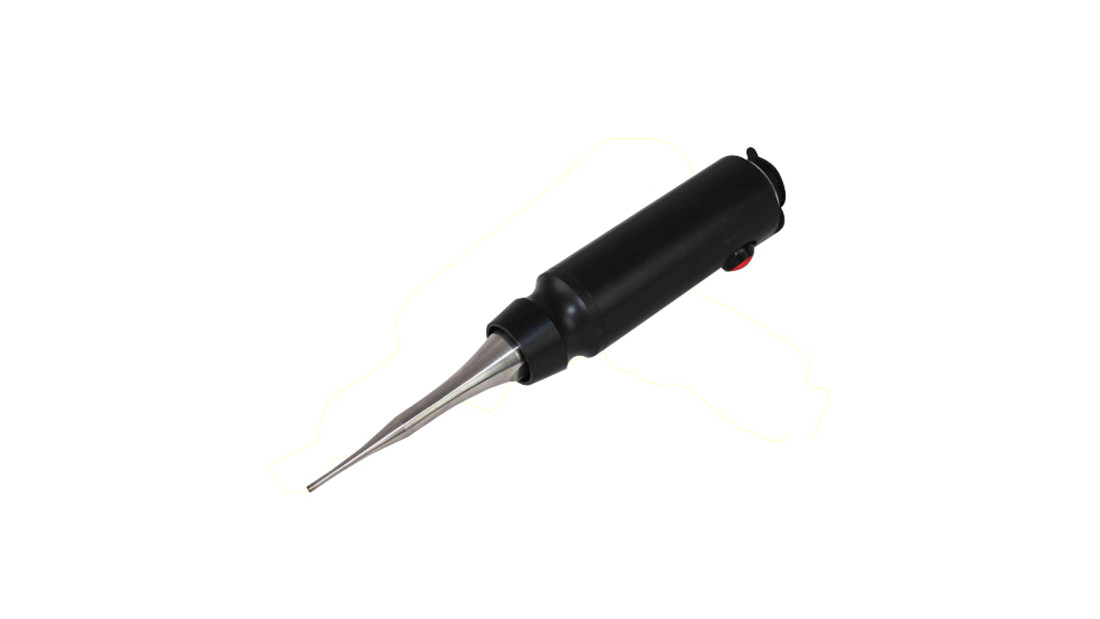

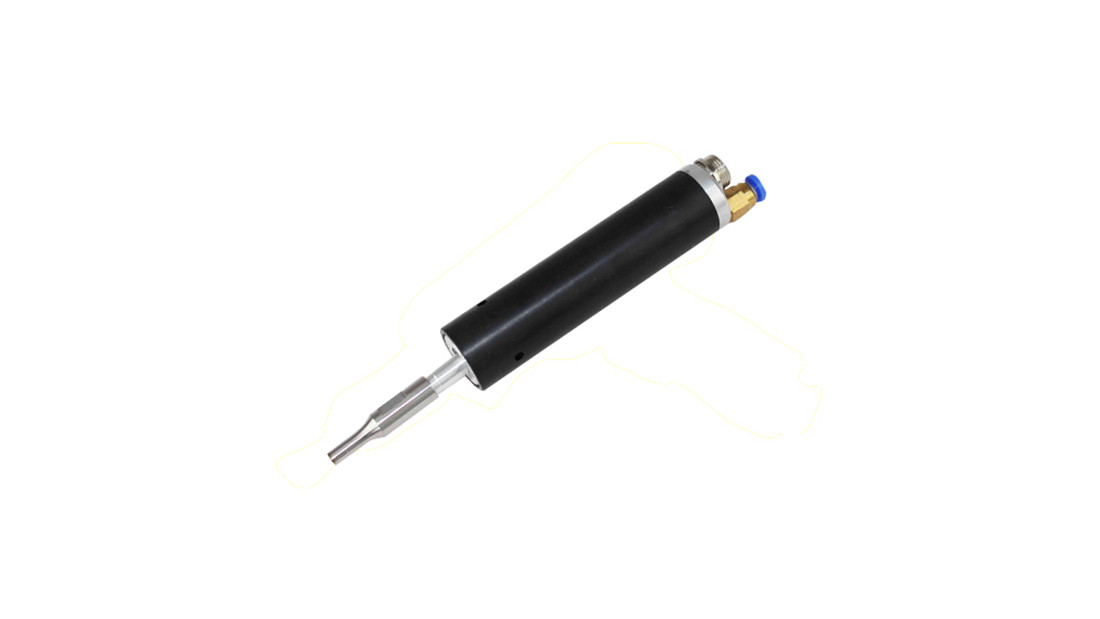

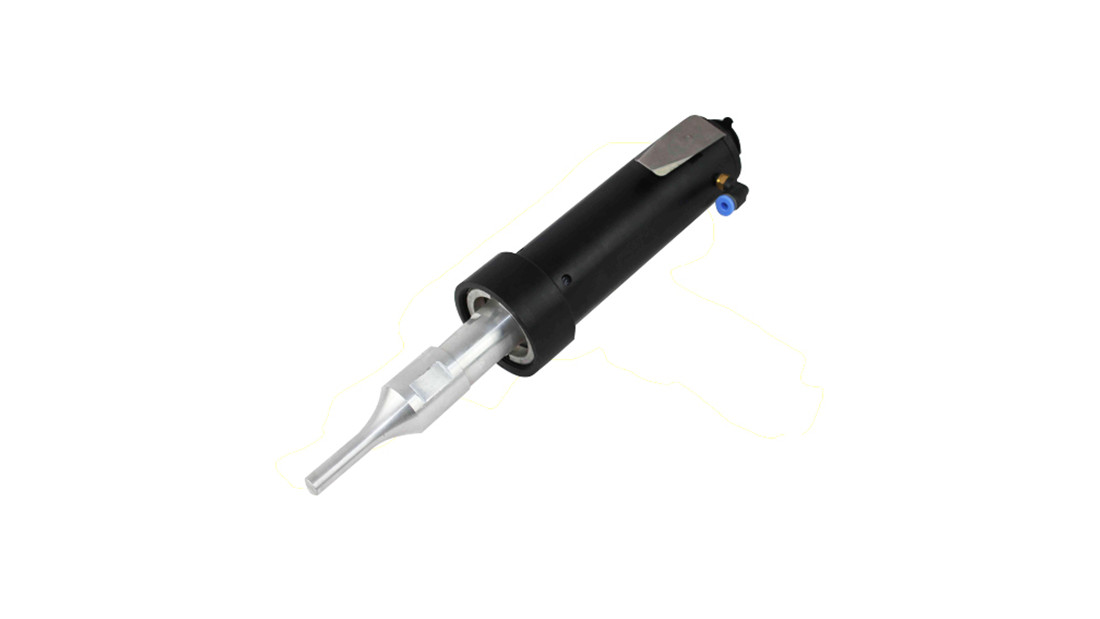

Ultrasonic Hand Held Welding Systems

Product Description
Weld by digital time and/or energy with ultrasonic hand held welding systems for manual assembly operations, such as spot welding, staking and inserting. Available in 20, 28, 30 and 40 kHz frequencies, these lightweight hand held systems feature autotuning, programmable time, energy or continuous duty welding modes and digital amplitude control.
An ultrasonic spot welding machine in accordance with ergonomics is arranged on the basis of the handheld welder. It is primarily used for point-ny-point riveting, welding and molding of thermoplastic. With the modular integrated circuit, it has strong output power and is easy for operation. The built-in fully-automatic protection circuit ensures safe application and stable and reliable operation.

Advantages

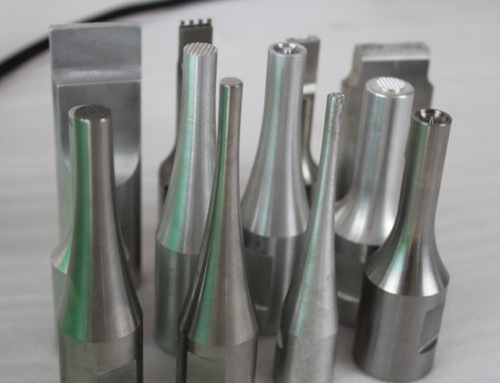

• The welding horns can be customized
• Ideal for spot welding, riveting or beading
• Rugged construction for optimal sound propagation
• Very high performance
• Protected cable duct
• Very small and light device for ergonomic working
• Overload Protection to protect equipment
• Welds by Time, Energy or Peak Power with settable

Ultrasonic Hand Held Welding Systems

Applications
• Textiles and technical textiles
• Nonwovens and plastic films
• Sun protection manufacturers
• Performance fabrics
• Any fusible fabric
• Auto parts and textiles
• Food packaging
• Electronic product
• Medical equipment industry

 Name  Ultrasonic Hand Welding Unit
 Model  HUW800
 Power Rating  800watts (Optional 1000/600/500/300watt)
 Frequency  30kHz (Optional 20/28/40kHz)
 Dimensions  380x285x140mm
 Voltage  110v,50/60Hz/220V
 Includes  Generator/Converter/Probe
 Model Horn  Customized
